Basic Info.
Model NO.
FM50GF
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Diesel Engine
Weichai Original Deutz or Steyr
Alternator
Brushless Stamford
Cooling
Water Cooling
Phase
Three Phase or Single Phase
Optional
ATS or Trailer
Transport Package
Plywood Package
Specification
2900*1300*1700mm
Trademark
FM
Origin
China
HS Code
8502120000
Production Capacity
1000
Product Description

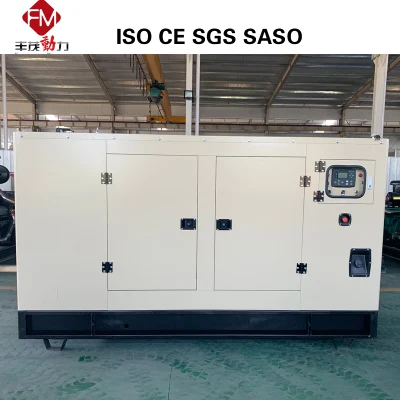

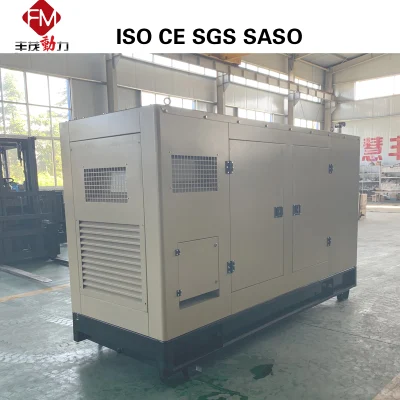

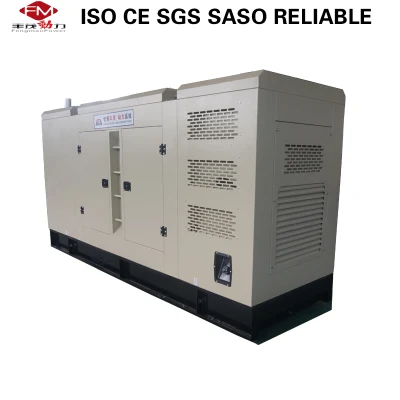

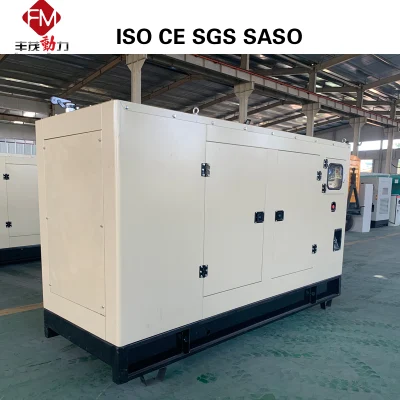

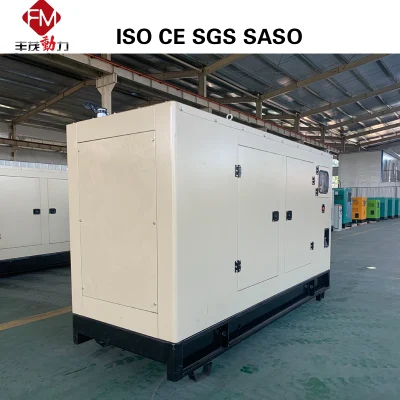

Soundproof diesel generator weichai Deutz 50kw 100kw 150kw with silent stamford alternator three phase
| Generator Rated Output | 50KW 100KW 150KW |
| Generator Phase | Three Phase /Single Phase |
| Generator Frequency | 50HZ /60HZ |
| Generator Speed | 1500rpm /1800rpm |
| Optional | Smart Controller/Silent /ATS /Trailer |
Diesel Engine
| Engine Brand | Weichai (Original) |
| Engine Model | Deutz Series |
| Engine Cylinder | 4-6 Cylinders |
| Engine Rated Power | 50kw 100kw 150kw |
| Rated Speed | 1500rpm / 1800rpm |
Alternator
| Alternator Brand | Stamford /Marathon /Leroy-somer/ Faraday |
| Alternator Power | 50kw 100kw 200kw |
| Alternator type | Brushless,100% copper wires |
Company Main Products:
Diesel Generators : 1kw to 1000kw.
Famous engines:
Powered by Weichai engines,Cummins/Yuchai/Deutz/Steyr/Shangchai/Ricardo/Volvo/Perkins/ etc
Famous Alternators:
Stamford/Marathon/Faraday/Leroy-somer etc.
Gasoline Generators
Water pump units
Diesel engines
Spare parts
Generators Variety Models:
Silent type with Fuel tank
LCD show panel with protection system,self-start
Mobile Trailer types
Automatic transfer switch types(ATS)
Weatherproof types
Weichai Series Diesel Generators Features
In the last 70 years, more than 3 million diesel engines have won the respect and recognition of customers. Weichai Engine overhaul period for an average of 30000 hours the spin to the pennants lightweight air filter, under the beautiful shape of the screw supercharger, to optimize the design of the piping products meet the road the second stage, the three phase motor load ability, meet the requirements of the load mutation mining low noise, small vibration using enhanced fuel injection pump, increase the oil pressure, high temperature, engine experience plateau alpine baptism - 10 ° no auxiliary measures can be successfully started. Supporting power 15KW-1200KW.
| Genset Model | Rated Power KW | Rated Power KVA | Current A | Diesel Engine | Cylinder No | Bore*Stroke mm | Oil Capty L | Fuel Consumption g/kw.g | Size L×W×H | Weight kg |
| Weichai Yangzhou Engine Series | ||||||||||
| FM15GF | 15 | 18.75 | 27 | WP2.1D18E2 | 4 | 85*92 | 12 | 195 | 1600*700*1200 | 350 |
| FM20GF | 20 | 25 | 36 | WP2.3D25E200 | 4 | 90*100 | 14 | 195 | 1600*700*1250 | 450 |
| FM30GF | 30 | 37.5 | 54 | WP2.3D33E200 | 4 | 90*100 | 14 | 195 | 1700*700*1350 | 500 |
| FM35GF | 35 | 43.75 | 63 | WP2.3D40E200 | 4 | 90*100 | 14 | 195 | 1700*700*1350 | 600 |
| FM45GF | 45 | 56.25 | 81 | WP2.3D48E200 | 4 | 90*100 | 14 | 195 | 1800*750*1350 | 700 |
| FM60GF | 60 | 75 | 108 | WP4.1D66E200 | 4 | 105*125 | 15 | 195 | 1800*750*1450 | 800 |
| FM90GF | 90 | 112.5 | 162 | WP4.1D100E200 | 4 | 105*125 | 16 | 195 | 2200*850*1500 | 900 |
| Weichai Deut 3 Cylinders Series | ||||||||||
| FM30GF | 30 | 37.5 | 54 | D226B-3D | 3 | 105*120 | 15 | 220 | 1700*800*1200 | 500 |
| FM45GF | 45 | 56.25 | 81 | TD226B-3D | 3 | 105*120 | 15 | 220 | 1800*800*1400 | 550 |
| Weichai Series | ||||||||||
| FM50KW | 50 | 62.5 | 90 | WP4D66E200 | 4 | 105*130 | 18 | 198 | 1900*900*1500 | 720 |
| FM80KW | 80 | 100 | 144 | WP4D100E200 | 4 | 105*130 | 20 | 198 | 2100*900*1500 | 800 |
| FM100KW | 100 | 125 | 180 | WP4D108E200 | 4 | 105*130 | 20 | 198 | 2100*900*1500 | 900 |
| FM120KW | 120 | 150 | 216 | WP6D132E200 | 6 | 105*130 | 22 | 198 | 2400*900*1500 | 1000 |
| FM140KW | 140 | 175 | 252 | WP6D152E200 | 6 | 105*130 | 22 | 198 | 2600*1000*1500 | 1200 |
| FM150KW | 150 | 187.5 | 270 | WP6D167E200 | 6 | 105*130 | 22 | 198 | 2600*1000*1500 | 1200 |
| FM180KW | 180 | 225 | 324 | WP10D200E200 | 6 | 126*130 | 25 | 198 | 2800*1200*1600 | 1500 |
| FM200KW | 200 | 250 | 360 | WP10D238E200 | 6 | 126*130 | 27 | 198 | 2800*1200*1600 | 1800 |
| FM250KW | 250 | 312.5 | 450 | WP10D264E200 | 6 | 126*130 | 27 | 198 | 2800*1200*1600 | 2000 |
| FM280KW | 280 | 350 | 504 | WP12D317E200 | 6 | 126*155 | 32 | 198 | 3000*1250*1600 | 2200 |
| FM300KW | 300 | 375 | 540 | WP10D320E200 | 6 | 126*155 | 32 | 198 | 3000*1250*1600 | 2500 |
| FM350KW | 350 | 437.5 | 630 | WP13D385E200 | 6 | 127*165 | 32 | 198 | 3200*1350*1700 | 2800 |
| FM380KW | 380 | 475 | 684 | WP13D405E200 | 6 | 127*165 | 35 | 198 | 3200*1350*1700 | 3000 |
| FM400KW | 400 | 500 | 720 | WP13D440E310 | 6 | 127*165 | 35 | 198 | 3200*1350*1750 | 3200 |
| Weichai Series | ||||||||||
| FM450KW | 450 | 562.5 | 810 | WHM6160SD518-5 | 6 | 160*200 | 48 | 215 | 3600*1500*1800 | 3800 |
| FM550KW | 550 | 587.5 | 990 | WHM6160MD628-5 | 6 | 160*216 | 48 | 215 | 3600*1500*1800 | 4000 |
| Weichai Baudouin Series | ||||||||||
| FM400KW | 400 | 500 | 720 | 6M26D447E200 | 6 | 150*150 | 60 | 210 | 3600*1500*1800 | 3600 |
| FM450KW | 450 | 562.5 | 810 | 6M26D484E200 | 6 | 150*150 | 60 | 210 | 3600*1500*1800 | 4000 |
| FM520KW | 520 | 650 | 936 | 6M33D572E200 | 6 | 150*185 | 60 | 210 | 3600*1500*1800 | 4500 |
| FM550KW | 550 | 687.5 | 990 | 6M33D605E200 | 6 | 150*185 | 60 | 210 | 3600*1500*1850 | 5000 |
| FM720KW | 720 | 900 | 1296 | 12M26D792E200 | 12 | 150*150 | 120 | 210 | 4500*1850*2200 | 7000 |
| FM820KW | 820 | 1025 | 1476 | 12M26D902E200 | 12 | 150*150 | 120 | 210 | 4500*1850*2200 | 7500 |
| FM900KW | 900 | 1125 | 1620 | 12M26D968E200 | 12 | 150*150 | 120 | 210 | 4600*1850*2250 | 8000 |
| FM1000KW | 1000 | 1250 | 1800 | 12M33D1108E200 | 12 | 150*185 | 135 | 210 | 4800*2000*2400 | 8600 |
| FM1100KW | 1100 | 1375 | 1980 | 12M33D1210E200 | 12 | 150*185 | 135 | 210 | 4800*2000*2500 | 9000 |
